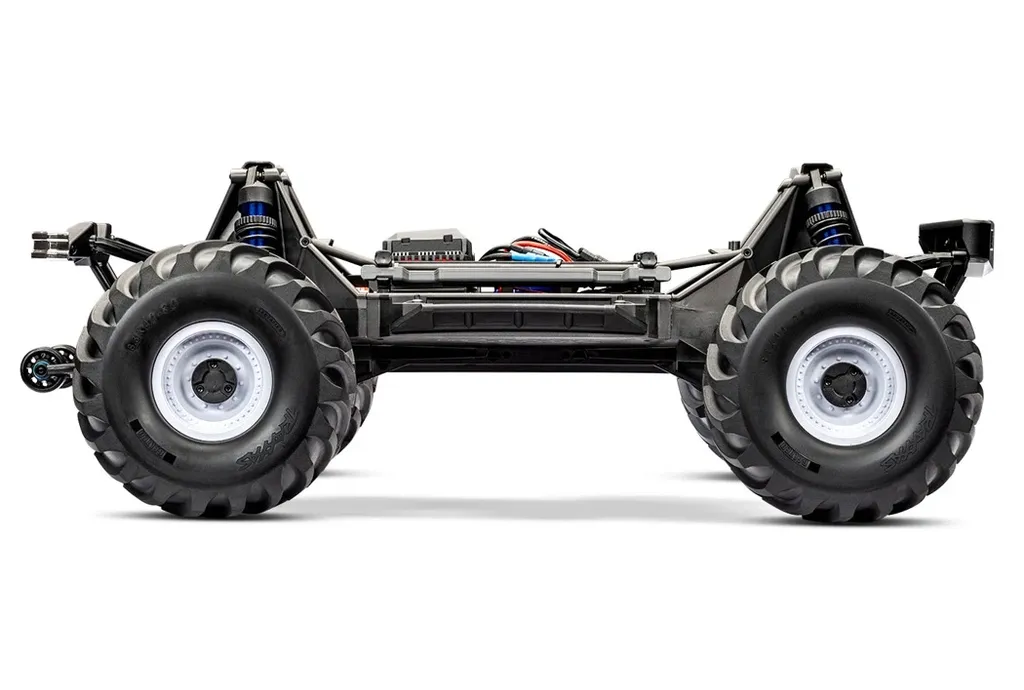

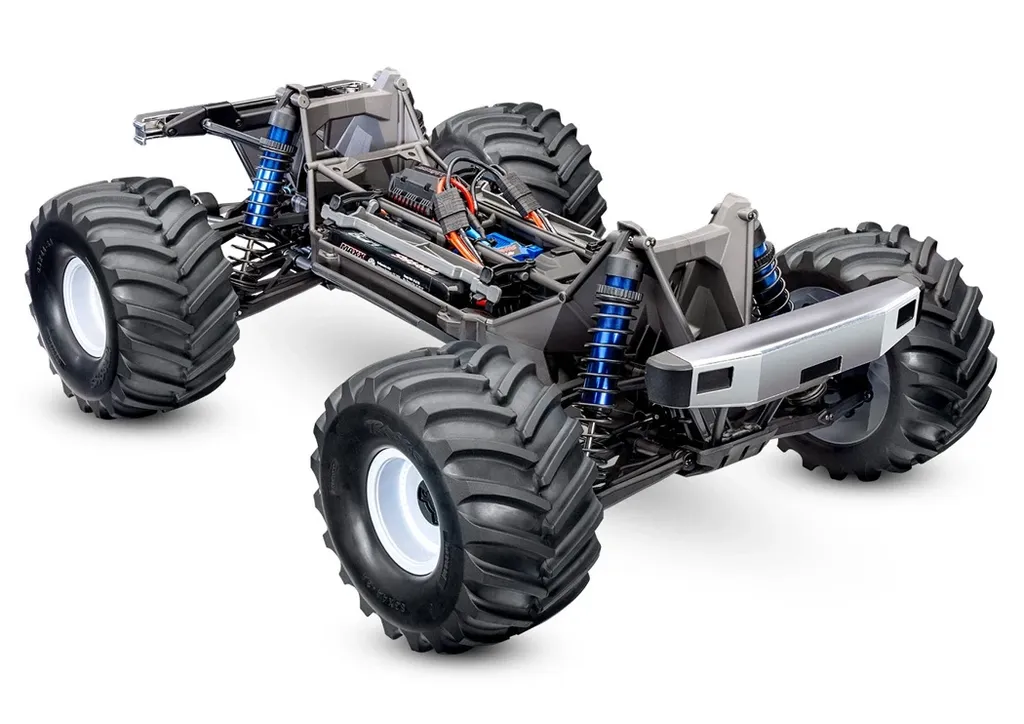

X-Monster Chassi 8S 4WD Brushless TQi TSM (utan Kaross)

Art.nr: TRX77036-4-WB
13 995 kr
/ inkl moms
TRX77036-4-WB Traxxas
  • 4.3/5 kundnöjdhet på Trustpilot
  • Fraktfritt över 1 100 kr
  • Snabb leverans

Traxxas 77036-4-WB - X-Monster 8s Brushless Chassis RTR

X-Maxx Toughness. Monster Truck Style.

The new X-Monster combines the legendary power, size, and durability of X-Maxx with even more strength, more size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 80+ kph speed with the authentic scale looks of a real monster truck. Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8s power!



Legacy of Toughness
Traxxas set a new standard for RC monster trucks with the release of the original X-Maxx. Since then, X-Maxx has only grown stronger and more powerful with each generation. The new X-Monster incorporates the latest and greatest X-Truck® upgrades to create the strongest X-Maxx chassis and driveline ever offered.

New Monster Truck Wheels & Terra Groove Tires
All new chevron-pattern monster truck tires give the X-Monster a livelier feel with improved grip and greater control. The huge 8.6” tires are made from an ultra-soft compound for incredible traction with internal belting to reduce ballooning. Replica white monster truck wheels feature military-style hubs for an authentic scale appearance.

Choose Your Body (Sold Separately)
Pair the X-Monster Chassis with a replica Ford® F-150®, Chevrolet® C/K, or BIGFOOT® No. 8 body (sold separately). Each body features a full-length reinforced body cage for maximum rigidity. Already have a custom-painted X-Maxx body? The X-Monster chassis also accepts existing X-Maxx clipless bodies!


What’s In The Box:

  • X-Monster Chassis with Traxxas Big Block brushless motor
  • VXL-8s waterproof electronic speed control with integrated telemetry
  • Optional high speed pinion gear
  • TQi 2.4 GHz radio system
  • High quality maintenance tools

What You’ll Need:

  • Body: Select your X-Monster body from one of several available options
  • Batteries: X-Monster requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance (part 2890X).
  • Charger: EZ Peak Live Dual 4s LiPo Charger with iD®
  • AA Alkaline Batteries: Four to the transmitter

Truck Specs:

  • Model Name: X-Monster Chassis
  • Type: Monster Truck
  • Speed: 80+ kph with two 4s LiPo batteries and optional speed gear
  • Level: 6
  • Size: X-Truck
  • Weight: 8.66 kg
  • Length: 779 mm
  • Width: 540 mm
  • Height: 355 mm
  • Wheelbase: 480 mm
  • Center Ground Clearance: 107 mm
  • Drive System: Shaft-driven 4WD
  • Drivetrain: Shaft-driven 4WD
  • Transmission: Single speed
  • Differential Type: Sealed, hardened steel bevel, limited slip
  • Gear Pitch: 1.0 metric pitch
  • Servo: 2085XL metal gear ultra-high-torque waterproof
  • Radio System: TQi™ 2.4 GHz 2-channel transmitter with wireless module
  • Battery Compartment Specs: 197 x 52 x 44 mm

MOTOR SPECS

  • Motor Name: Velineon 1200XL
  • Type: 1275 Kv sensorless brushless
  • Length: 110 mm
  • Diameter: 48 mm
  • Shaft Size: 5 mm
  • Connector Type: 6.5 mm bullet connectors

ESC SPECS

  • ESC Name: Velineon VXL-8s
  • Type: Brushless
  • Motor Connectors: 6.5 mm bullet connectors
  • Battery Connectors: Traxxas High-Current Connectors
  • Power Wire: 10 gauge Maxx® Cable
Skala 1:5
Drivhjul 4WD
Motortyp Borstlös
Biltyp Monstertruck
Bilmodell X-Monster
Antal Lipo-celler 8S
Levereras som Färdigmonterat chassi utan kaross
Batteri ingår Nej
Laddare ingår Nej

Tekniska specifikationer

Skala X-Truck
Biltyp Monstertruck
Levereras som Färdigmonterat chassi med radio, utan kaross
Drivning 4WD – fyrhjulsdrift
Drivkälla El
Motortyp Borstlös
Motor Velineon 1200XL – 1275 Kv
Fartreglage Velineon VXL-8s
Radio TQi 2,4 GHz, 2 kanaler
Servo 2085XL med metalldrev med mycket högt vridmoment vattenskyddad
Teknik TSM – Traxxas Stability Management
Batteri Ingår inte
LiPo-kompatibilitet 2 × 4S LiPo (8S totalt)
Max cellantal 8S
Kontakt Traxxas High-Current
Laddare Ingår inte
Hastighet Cirka 80+ km/h med 2 × 4S LiPo batteri och högfartsdrev (säljs separat)
Mått (L×B×H) 779 × 540 × 355 mm
Vikt 8,66 kg
Hjulbas 480 mm
Markfrigång 107 mm
Kaross Ingår inte
Stötdämpare GTX
Differentialer Tätade koniska differentialer av härdat stål med begränsad slirning
Transmission Enväxlad
Kuggdelning Modul 1,0
Hjulhex 24 mm
Batterifack 197 mm × 52 mm × 44 mm
Vattenresistent Vattenskyddad elektronik; följ manualens skötselråd
  • Reservdelslista – 77036-4
    658.45 KB
    Hämta
  • Sprängskiss – Rear Assembly – 77036-4
    816.05 KB
    Hämta
  • Sprängskiss – Modular Assembly – 77036-4
    694.69 KB
    Hämta
  • Sprängskiss – Front Assembly – 77036-4
    798.84 KB
    Hämta
  • Sprängskiss – Chassis Assembly – 77036-4
    494.89 KB
    Hämta
  • Sprängskiss – Body Assembly – 77036-4
    599.55 KB
    Hämta
  • Sprängskiss – Body Assembly – 77036-4
    617.50 KB
    Hämta
