SRT-Racing – BH125W HV Brushless Servo for 1/5 & 1/6 Scale Cars

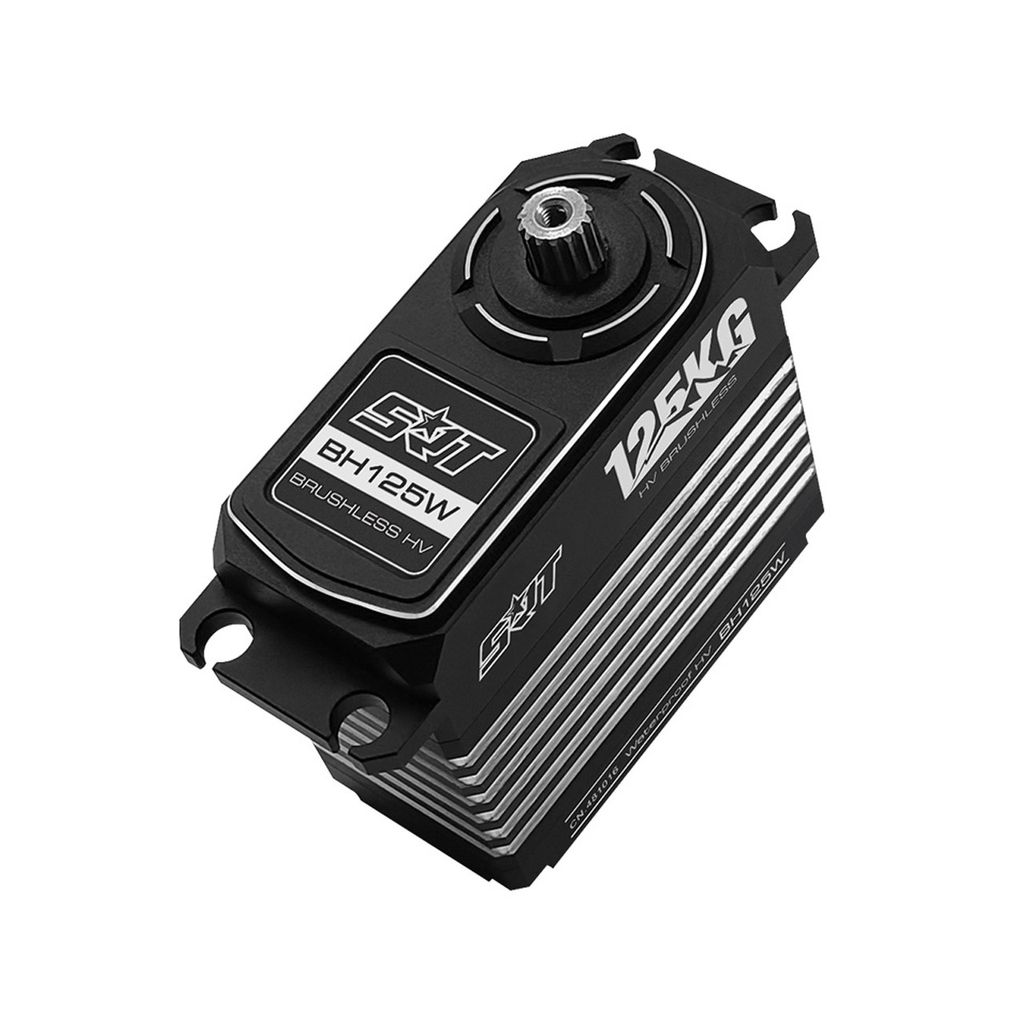

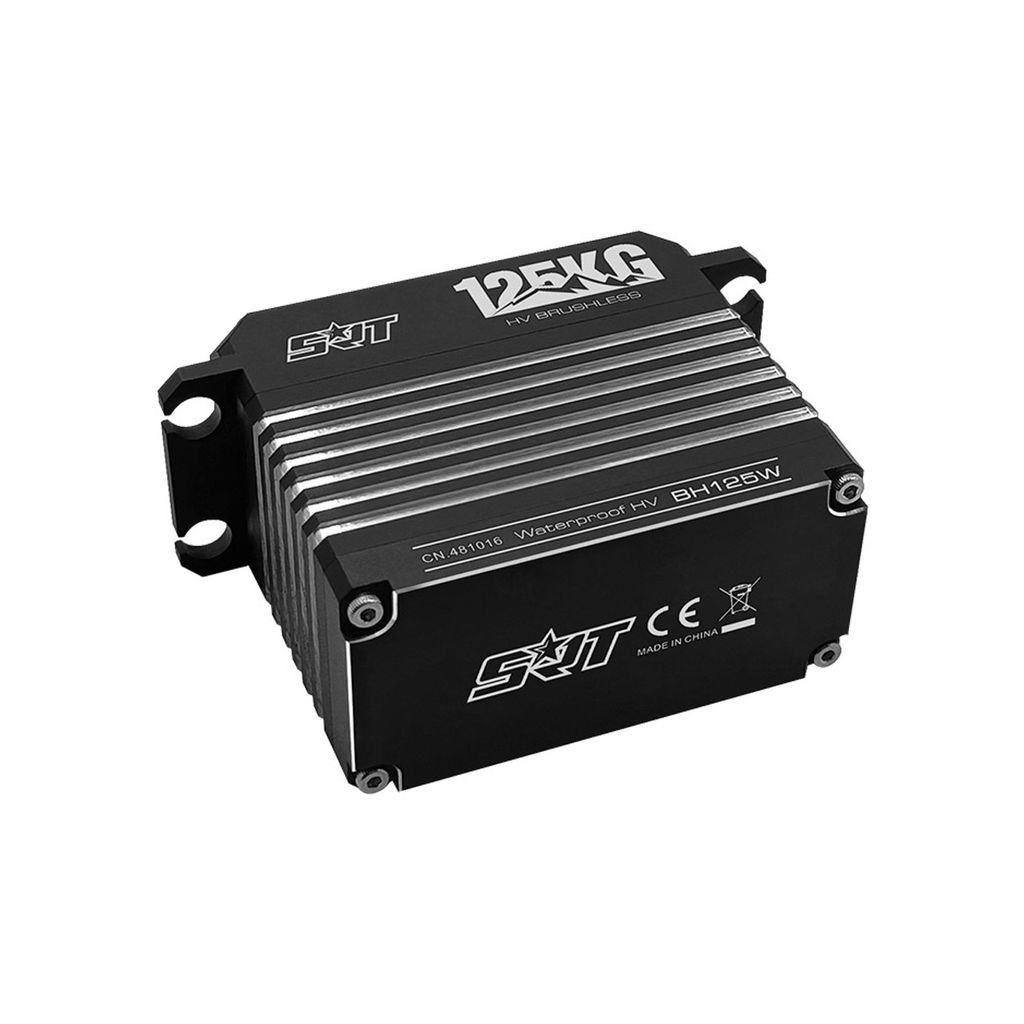

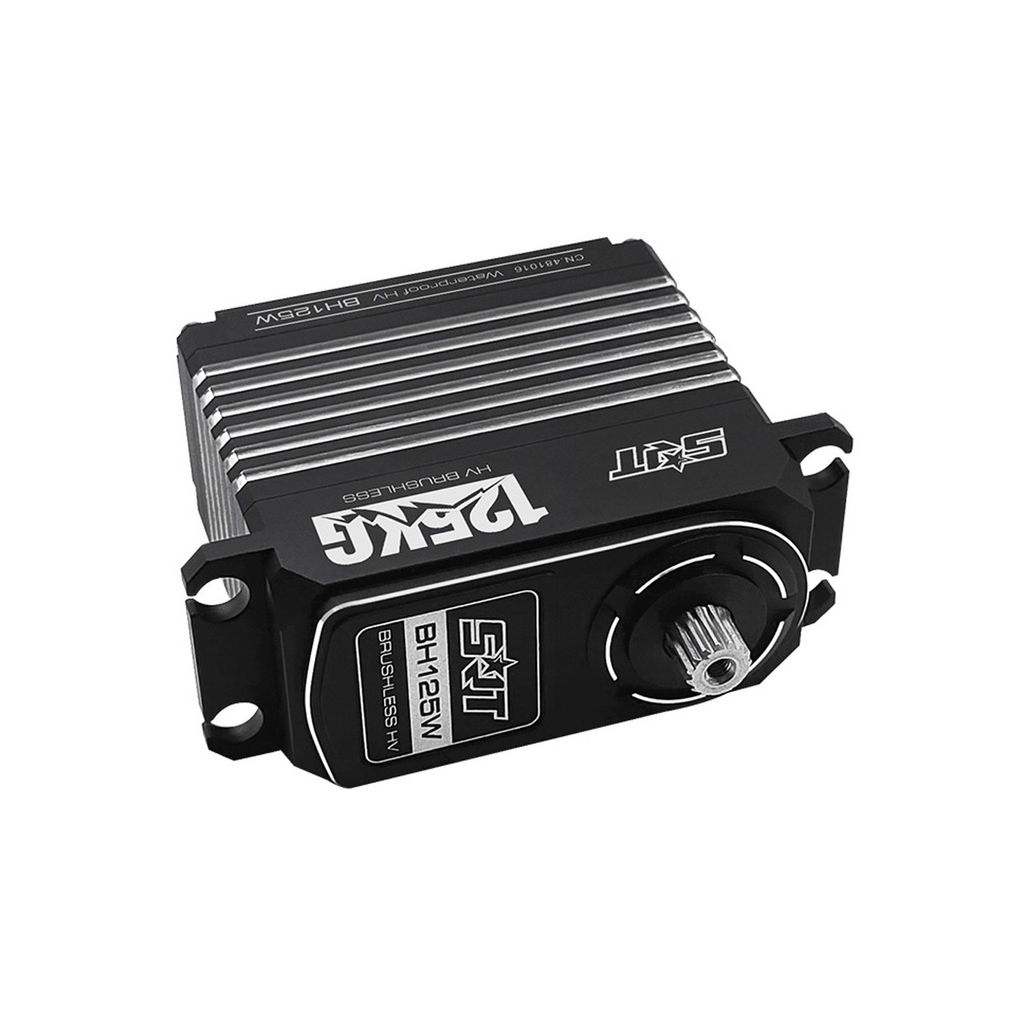

The BH125W is an extremely powerful high-voltage servo for large-scale cars. Its fully CNC-machined aluminum case with slotted heat-sink design, stainless-steel gear train and strong brushless motor deliver massive torque and reliable performance for heavy 1/5 and 1/6 vehicles.
Features:
- High-voltage brushless servo with up to 125 kg·cm torque @ 8.4 V
- Full metal CNC aluminum housing with integrated heat dissipation fins
- Stainless-steel gears for maximum strength and durability
- Large dual ball bearings for smooth and stable operation
- 15T output spline – ideal as direct upgrade for many stock servos
- Conventional 3-wire JR style plug, compatible with most receivers
- Perfect for 1/5 & 1/6 scale crawlers, trucks and other heavy-duty models
Technical Specifications:
| Voltage: | 6.0–8.4 V (HV) | |
| Transit speed: | 0.11 sec/60° @ 7.4 V | 0.085 sec/60° @ 8.4 V |
| Torque: | 110 kg·cm @ 7.4 V | 125 kg·cm @ 8.4 V |
| Motor: | Brushless | |
| Gears: | Stainless steel, full metal gear train | |
| Case: | CNC-machined aluminum, slotted heat-sink design | |
| Bearings: | Dual ball bearings | |
| Spline: | 15T | |

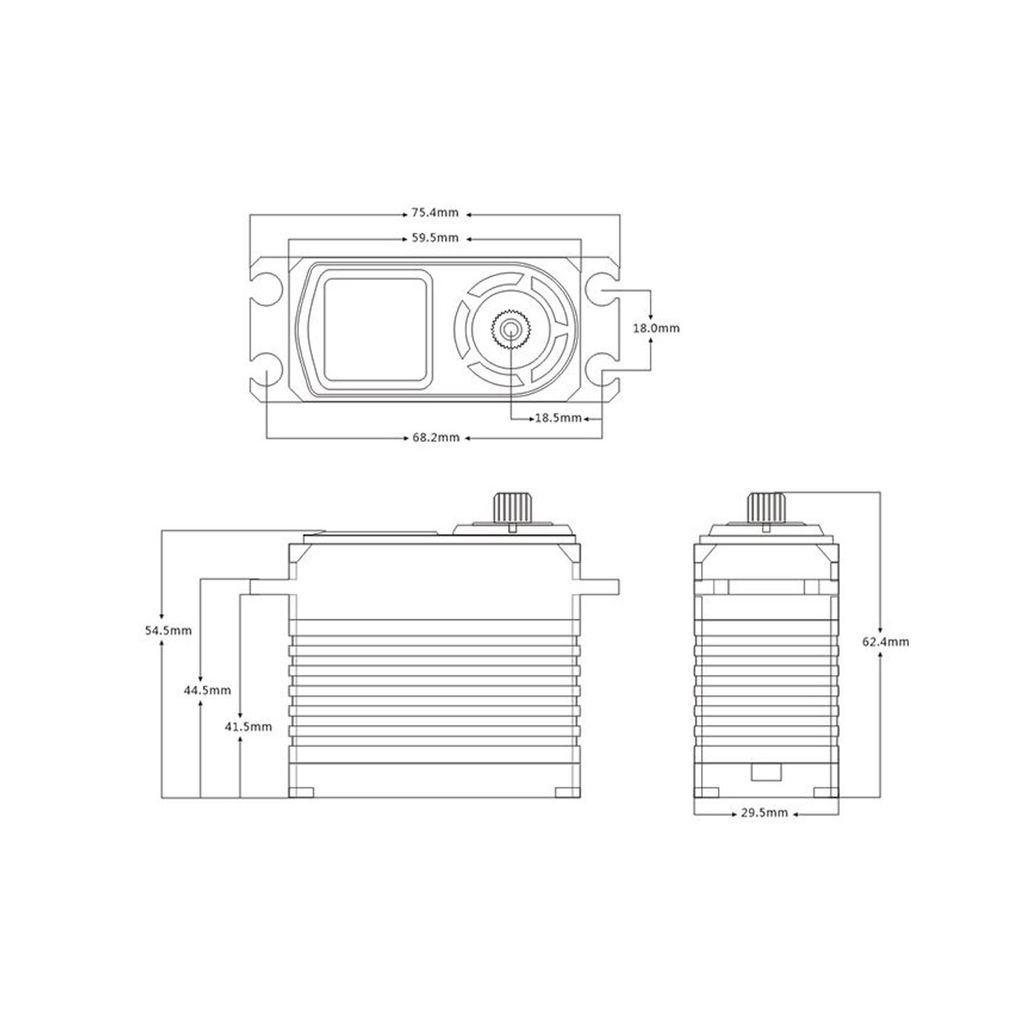

| Dimensions: | 59.5 x 29.5 x 54.5mm | |
| Weight: | 209g | |
| Produkttyp | Servo |
| Splines | 15T |
| Motortyp | Borstlös |
| Drevmaterial | Titan/stål |
| Driftspänning | 6–8,4 V |
| Längd | 59,5 mm |
| Bredd | 29,5 mm |
| Höjd | 54,5 mm |
| Servoteknik | Digital HV |
| Vattenskydd | Vattentät |
| Servostorlek | Storservo |
| Användningsområde | RC-bil |
| Vridmoment | 125 kg·cm vid 8,4 V |
| Servohastighet | 0,085 s/60° vid 8,4 V |
Specifikationer
| Produkttyp | Servo |
| Modell | BH125W |
| Användningsområde | RC-bil |
| Servostorlek | Storservo |
| Servoteknik | Digital HV |
| Motortyp | Borstlös |
| Driftspänning | 6–8,4 V |
| Drevmaterial | Titan/stål |
| Splines | 15T |
| Vattenskydd | Vattentät |
| Lagring | 2 NMB kullager |
| Styrsignal | 1520 µs / 330 Hz |
| Drifttemperatur | -10 till +60 °C |
| Hastighet vid 6 V | 0,12 s/60° |
| Hastighet vid 7,4 V | 0,11 s/60° |
| Hastighet vid 8,4 V | 0,085 s/60° |
| Vridmoment vid 6 V | 90 kg·cm |
| Vridmoment vid 7,4 V | 110 kg·cm |
| Vridmoment vid 8,4 V | 125 kg·cm |
| Längd | 59,5 mm |
| Bredd | 29,5 mm |
| Höjd | 54,5 mm |
| Vikt | 209 g |
| Servokontakt | JR |
| Kabellängd | 350 mm |
