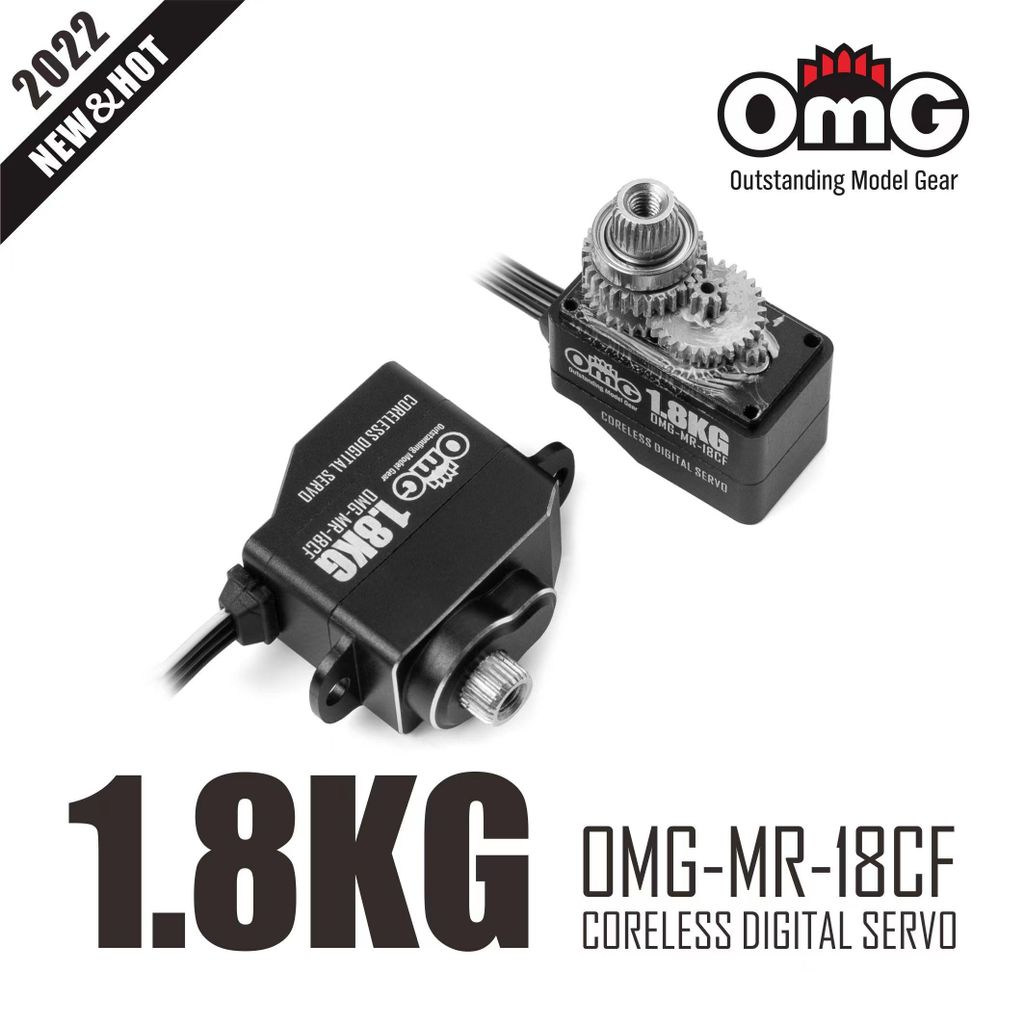

Servo Digitalt Micro 1.8kg/0.065sek (6.0V) OMG

Servo Digitalt Micro 1.8kg/0.065sek OMG
Hel aluminium hus

Item No. OMG-MR-18CF

Operating voltage:4.8-6.0V

Operating speed:

4.8V-0.070sec/60°

6.0V-0.065sec/60°

Stall torque:

4.8V-1.6kgf.cm(22oz-in)

6.0V-1.8kgf.cm(25oz-in)

Gear material:Copper

Horn gear spline:25T Φ4.9

Size:20X11.3X22.1mm(0.79x0.44x0.87in)

Case material:Full metal

Weight:11.5g

Bearing:2BB

Motor type:Coreless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Neutral position :1520μsec

Frequency:1520uS

Refresh rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:180mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:No
