EzRun Combo MAX6 G2 - 5690SD 1250kV G2 Sensorbaserat 1/6

Hobbywing 38010804 - EzRun Combo MAX6 G2 - 5690SD 1250kV G2 Sensored 1/6

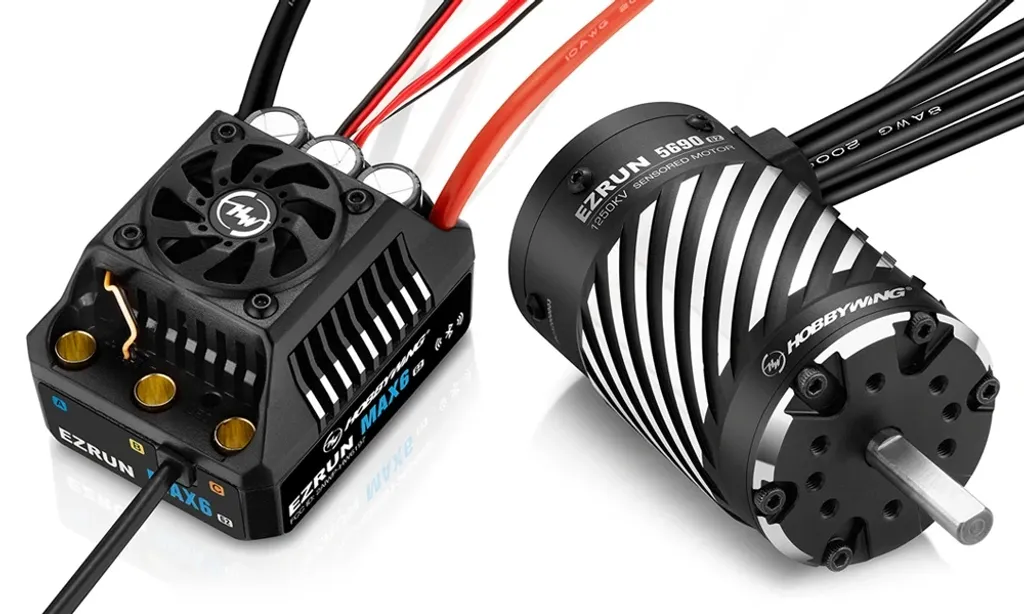

Hobbywing EzRun MAX6 G2 ESC

• Type: 1/7-1/6 scale, Brushless, Sensored IP67 ESC
• Cont./Peak Current: 200A/1200A
• Input Voltage: 3-8S Lipo
• BEC Output: Switch-mode 6V/7.4V/8.4V @8A
• Input Wires: 10AWG-200MM
• Input Connectors: No
• Output connectors: 6.5mm Connectors (Female)
• Size: 70x56x45.5mm
• Weight: 245g
• Fan Size: 35x35x10mm
• Fan Input voltage: 5-8.4V
• Fan Input Connector: Powered by BEC

Motor EzRun 5690SD G2 1250kV Specs:

• Type: 1/5 & 1/6, brushless, sensored ESC
• Pole Count: 4
• KV Rating: 1250
• LiPo Cells: 3-8S
• No-load Current(A): 6.6A
• O.D.: 56mm
• Length: 90.2mm
• Shaft Diameter: 8mm
• Connectors: 6.5mm Male
• Wire: 8AWG-200MM
• Weight: 867g
• Front Bearing: D22xD8xT7mm
• Rear Bearing: D19xD8xT6mm
• ESC: EZRUN MAX6 G2, EZRUN MAX5 HV G2 (8mm motor connectors required)
• Vehicles: 1/6 Short Course Truck, Truck & 1/5 Light-load Trucks - Examples: Losi Super Baja Rey，ARRMA Kraton 8S，ARRMA Outcast 8S
