Servo Digitalt Micro 1.8kg/0.065sek (6.0V) OMG

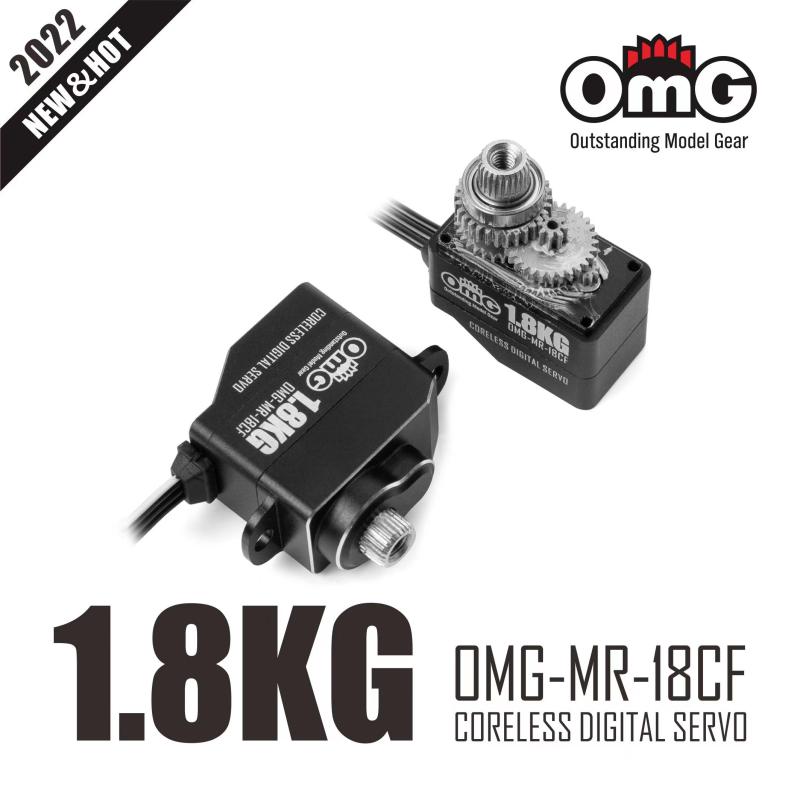

Servo Digitalt Micro 1.8kg/0.065sek OMG
Hel aluminium hus
Item No. OMG-MR-18CF
Operating voltage:4.8-6.0V
Operating speed:
4.8V-0.070sec/60°
6.0V-0.065sec/60°
Stall torque:
4.8V-1.6kgf.cm(22oz-in)
6.0V-1.8kgf.cm(25oz-in)
Gear material:Copper
Horn gear spline:25T Φ4.9
Size:20X11.3X22.1mm(0.79x0.44x0.87in)
Case material:Full metal
Weight:11.5g
Bearing:2BB
Motor type:Coreless
Operating temperature:-15℃~+70℃
Operating travel :≈180±10°
Neutral position :1520μsec
Frequency:1520uS
Refresh rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:180mm
Waterproof level:Dust & Water Splash Resistacne
Programmable:No
