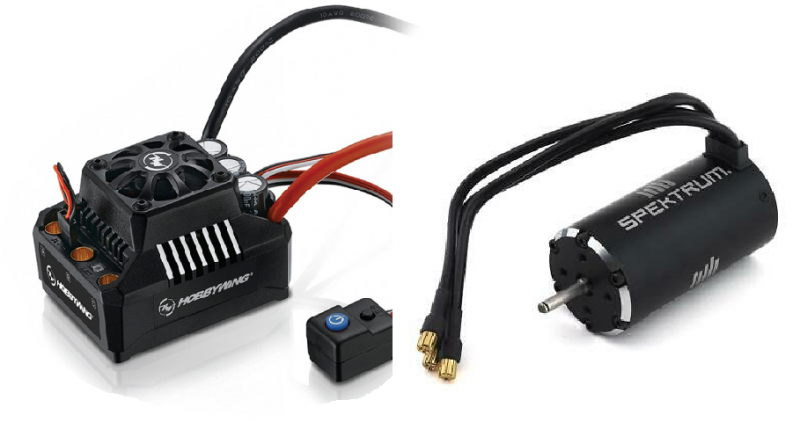

Borstlöst System 1/8-1/5 HW MAX6 ESC / 4685 Spektrum Firma 1250kv Motor

Borstlöst System 1/8-1/5 HW MAX6 ESC / 4685 Spektrum Firma 1250kv Motor (5mm axel)

EzRun MAX6 V3 160A Fartreglage 1/6

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error. Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Voltage Built-in BEC

The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.

Advanced and Secure Electronic Switch

The MAX6 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge

You can upgrade the MAX6 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

• Scale: 1/6th 1/7th
• Brushed/Brushless: BL
• Sensored/Sensorless: SL
• Waterproof: WP
• Cont./Peak Current: 160A/1050A
• Input: 3-8S LiPo/9-24 Cells NiMH
• BEC Output: Switch Mode:6V/7.4V,6A

Wires & Connectors

• Input Wires: Red-10AWG-200mm*1/Black-10AWG-200mm*1
• Output Wires: Black-10AWG-200mm*3
• Input Connectors: No
• Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)

Fan

• Size: 35.0x35.0x10.0mm
• Voltage Range: 5-7.4V
• Powered by: Powered by BEC

ESC Programing via

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: FAN/Program Port

Firmware

• Firmware Upgrade: Supported

Size & Weight

• Size: 70.0x56.0x46.5mm
• Weight: 240g

Applications

• Motors: SL BL Motors/SD BL Motors(only in SL mode)
• Vehicles: 1/8 1/6 1/7 Touring Car/Buggy/Truck
• KV Rating/T Count: 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)

Click here to look at the FAQ and Software Updates for EzRun MAX6

Spektrum Firma 1250kv Motor 6.5mm bullet kontakter.

Kullagrad motor SPMXSM1200
Rekommenderade lipo: 4-8 cell LiPo
Anslutningstyp 6,5 mm bullet
Effektivitet 90%
Ingångsspänning 12-35.2V
Maximal kontinuerlig ström 180A
Motor Design Inrunner
Motortyp Borstlös
Antal poler 4
Yttre diameter 46mm
Effekt 6300W
Total längd 85 mm
Produktvikt 2640 oz (740 g)
RPM / Volt (Kv) 1250Kv
Axeldiameter 5mm
Wire Gauge 10 AWG
